Water Level – OTT

For water level and depth measurement, no application is the same in surface and groundwater. OTT Hydromet offers a variety of sensors with different measurement principles, tailored to fit the specific requirements of different hydrologic measurement sites, including bubbler, pressure sensor, radar, and shaft encoder technology. Multiple telemetry options are also available for remote data acquisition.

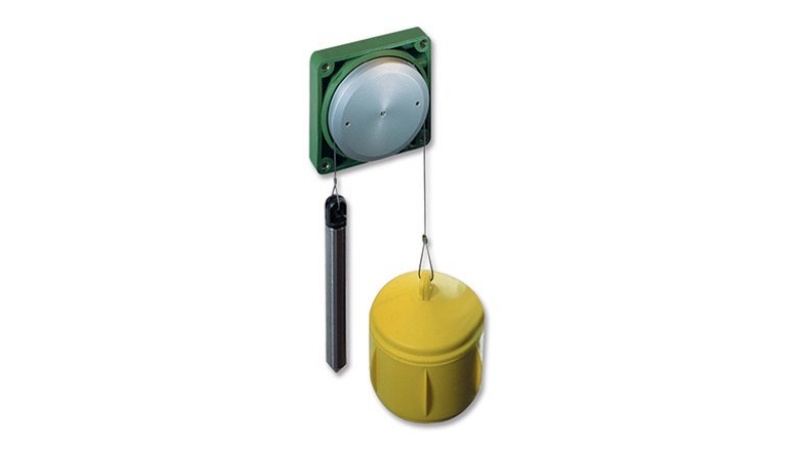

OTT SE 200

The OTT SE 200 float-operated shaft encoder level sensor provides proven water level measurements in continuous, unattended monitoring in ground and surface water applications. A measured value is being calculated via internal processing and is available via the interfaces SDI-12 and 4 … 20 mA.

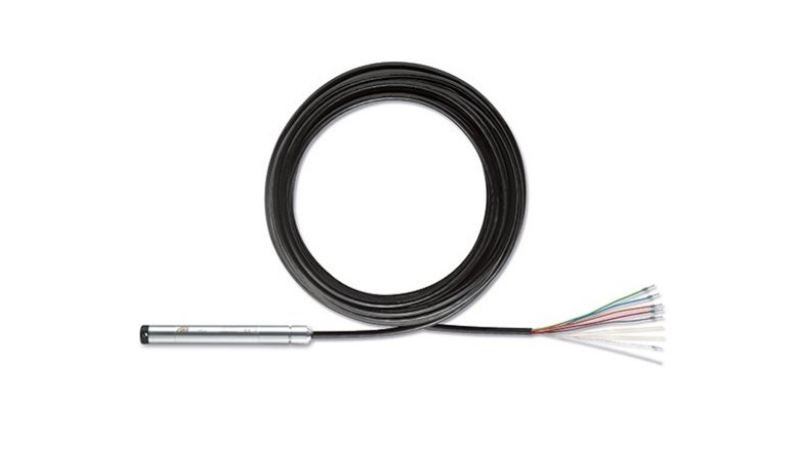

OTT PLS - Pressure Level Sensor

The OTT PLS measures water level, depth to water, or pressure by means of an integrated controller and ceramic pressure-measuring cell. Design features such as multiple communication outputs (SDI-12 or 4 … 20 mA), stainless steel housing, and a rugged cable make this sensor ideal for monitoring water level in a variety of applications.

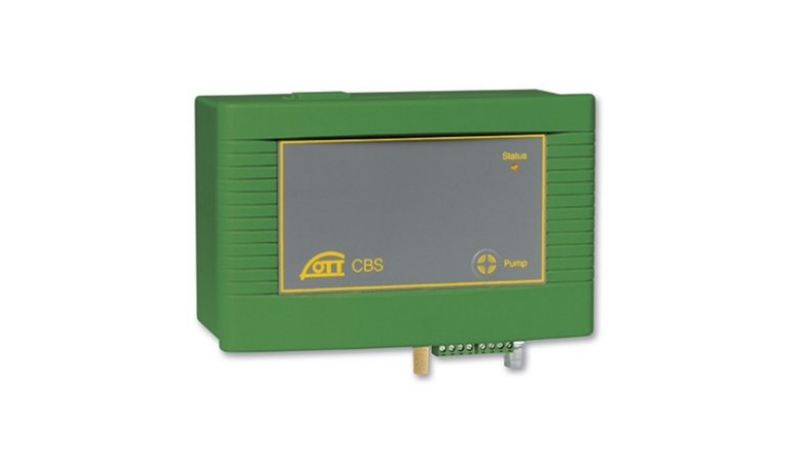

OTT CBS - Compact Bubbler Sensor

The OTT CBS is a compact, accurate, and low power bubbler sensor for surface water level monitoring. The OTT CBS meets or exceeds USGS standards for accuracy, and will not drift over time. It features outputs for SDI-12 and 4…20 mA.

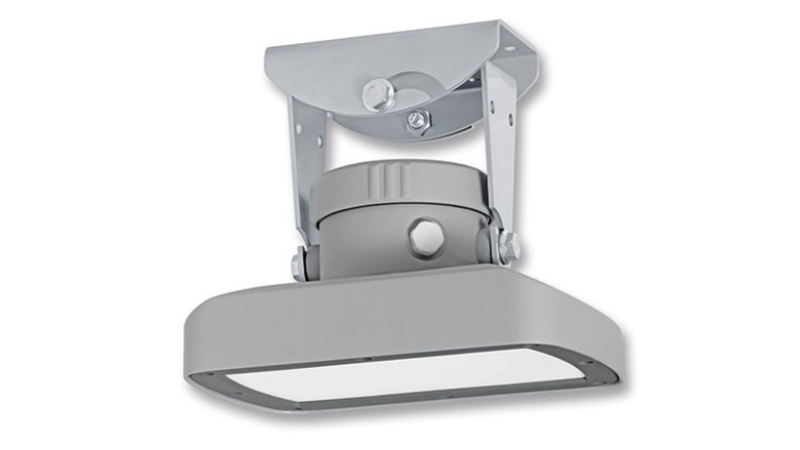

OTT RLS - Radar Level Sensor

The OTT RLS is a non-contact radar level sensor with pulse radar technology. The OTT RLS offers a large measurement range with a small blanking distance and narrow beam width and it easily connects to most dataloggers. The RLS has extremely low power consumption and is ideal for remote or solar powered sites.

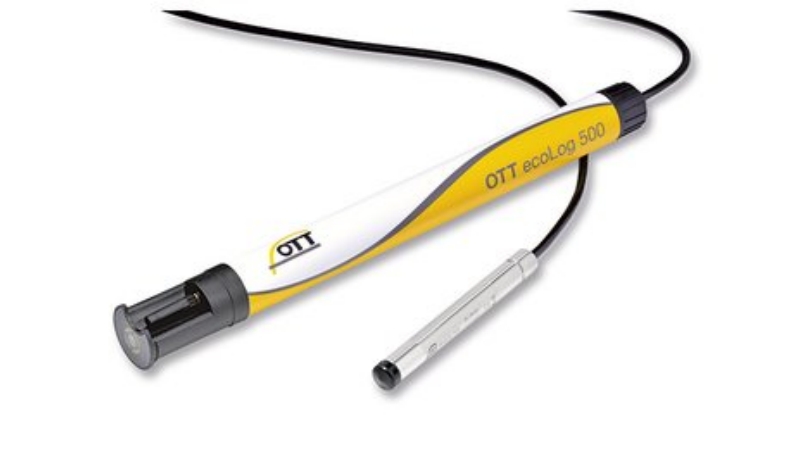

OTT ecoLog 500 Water Level Logger

The OTT ecoLog 500 is a complete system for water level and temperature measurement. Designed for full deployment inside groundwater wells as well as surface water applications, the OTT ecoLog 500 offers data and alarm message transmission options via SMS, HTTP, FTP and e-mail, giving users flexible remote data access from their office.

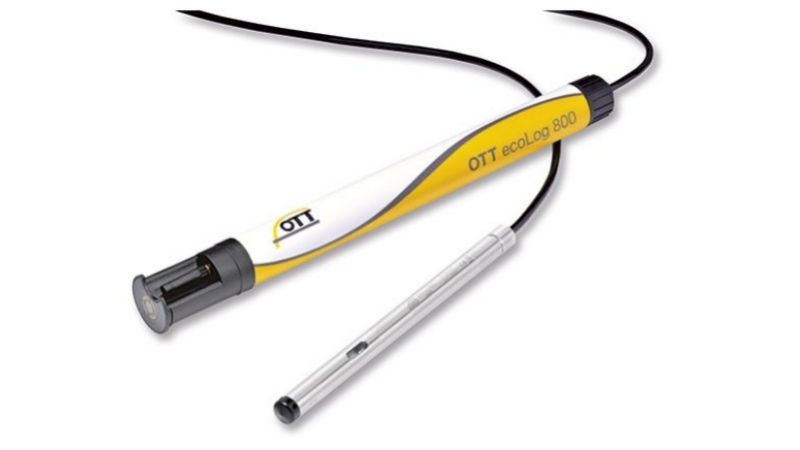

OTT ecoLog 800 Water Level Logger

The OTT ecoLog 800 is a self-contained system for measurement of water level, temperature, and conductivity in groundwater and surface water applications. The ecoLog 800 features a complete in-well solution for groundwater measurement and flexible remote data transmission options.

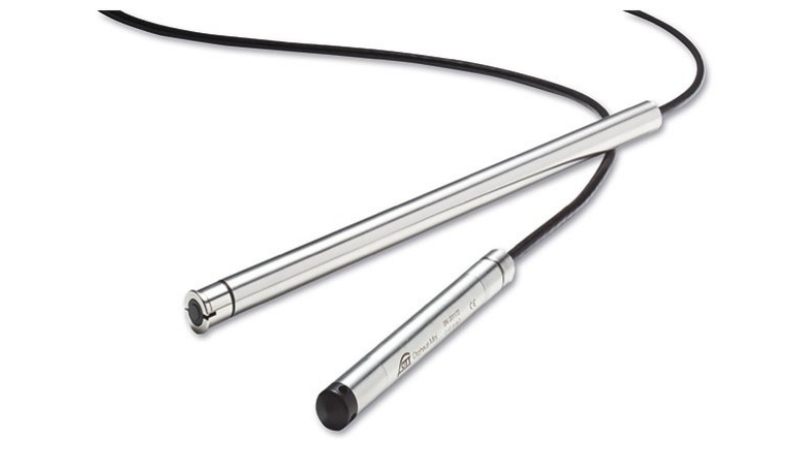

OTT Orpheus Mini Water Level Logger

The OTT Orpheus Mini is an integrated pressure sensor and datalogger for level measurement in surface and groundwater applications. It features a robust ceramic measuring cell for long term accuracy and its built in datalogger manages and stores all measurements at user-programmable intervals.

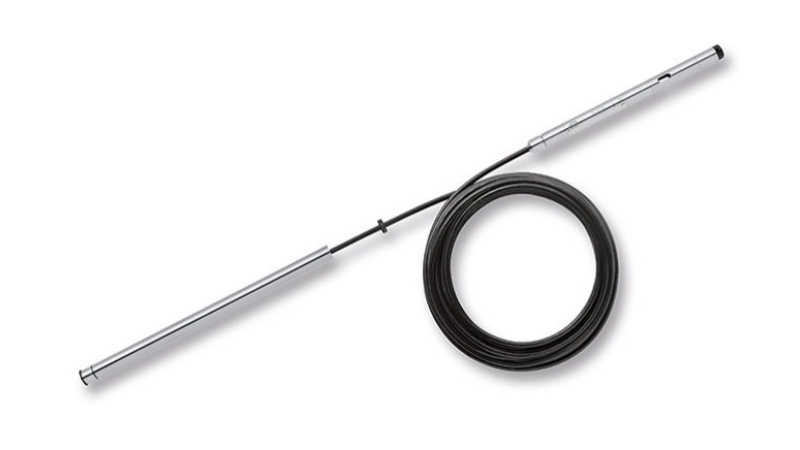

OTT CTD Sensor

The OTT CTD is an integrated sensor and datalogger for measurement of water level, temperature, and conductivity in groundwater and surface water applications.
It features a robust ceramic measuring cell for long term accuracy and has outputs for salinity and total dissolved solids (TDS). Its built in datalogger manages and stores all measurements at user-programmable intervals.
